SWIR (Short-Wavelength-Infrared) SMD
Applications
DOWA has launched high-power SMD (Surface Mounted Device) mounted SWIR (Short-Wavelength-Infrared) LED for machine vision and healthcare applications. Compared to LED die, SMD offer easier integration onto devices, providing flexibility in design and assembly.
SMD is expected to be used in applications such as moisture detection, food analysis, plastic sorting for recycling and semiconductor wafer inspection in machine vision.In healthcare market, by utilizing transmission and absorption of SWIR light, it becomes possible to shift from invasive diagnostic methods like blood sampling to non-invasive sensor of wearable devices, enabling a wide range of potential applications.
SMD is expected to be used in applications such as moisture detection, food analysis, plastic sorting for recycling and semiconductor wafer inspection in machine vision.In healthcare market, by utilizing transmission and absorption of SWIR light, it becomes possible to shift from invasive diagnostic methods like blood sampling to non-invasive sensor of wearable devices, enabling a wide range of potential applications.
DOWA‘s SMD (5 mm square） |

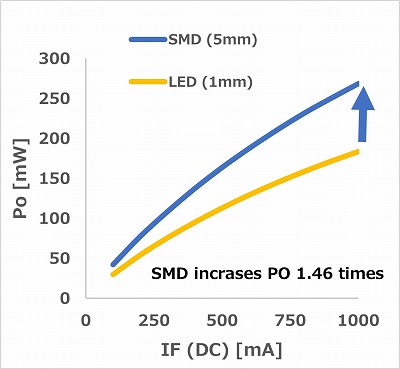

Bare die Po vs SMD Po（1,300 nm） |
 |
 |

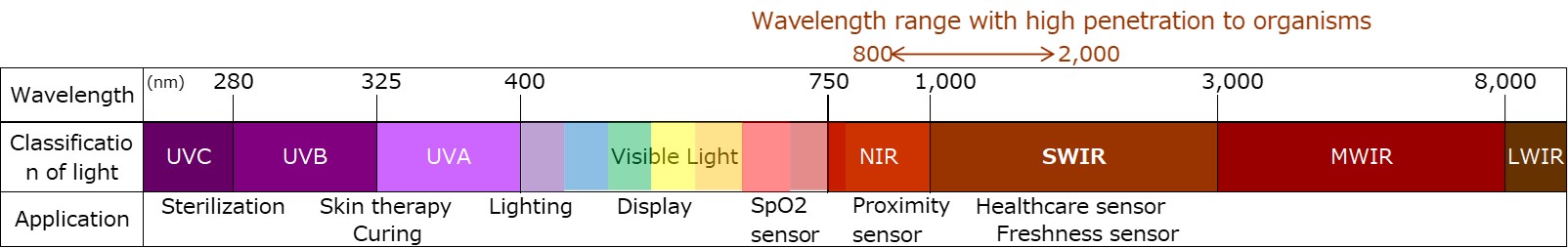

LED Wavelength and Applications |
|
 |
|
Products
| Part No. | Characteristics | Dimensions | |||||
| λp[nm] IfDC=1A |
Po[mW] IfDC=1A |
Vf[V] IfDC=1A |
Absolute Maximum Rating[A] | SMD Size [mm] |
SMD Thickness [mm] |
Top-Side | |
| 1040nm 5050SMD |
1,040 | 650 | 1.4 | 1 | 5.2*5.0 | 1.05 | N |
| 1060nm 5050SMD |
1,060 | 620 | 1.4 | 1 | 5.2*5.0 | 1.05 | N |
| 1100nm 5050SMD |
1,100 | 580 | 1.3 | 1 | 5.2*5.0 | 1.05 | N |
| 1200nm 5050SMD |
1,200 | 240 | 1.2 | 1 | 5.2*5.0 | 1.05 | N |
| 1300nm 5050SMD |
1,300 | 266 | 1.2 | 1 | 5.2*5.0 | 1.05 | N |
| 1350nm 5050SMD |
1,350 | 265 | 1.1 | 1 | 5.2*5.0 | 1.05 | N |
| 1460nm 5050SMD |
1,460 | 180 | 1.1 | 1 | 5.2*5.0 | 1.05 | N |
| 1550nm 5050SMD |
1,550 | 157 | 1.0 | 1 | 5.2*5.0 | 1.05 | N |
| 1650nm 5050SMD |
1,650 | 91 | 1.0 | 1 | 5.2*5.0 | 1.05 | N |
| 1900nm 5050SMD |
1,900 | 53 | 1.0 | 1 | 5.2*5.0 | 1.05 | N |
