InGaAs PIN Photodiode
Applications

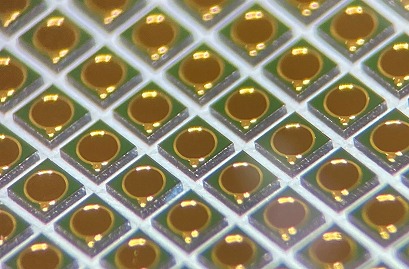

InGaAs PIN photodiode is a photosensitive device designed to detect near-infrared light. Our photodiode is capable of detecting wavelengths in the 900 nm to 1700 nm range.
Low dark current and high sensitivity are the key strengths of our photodiode. They are suitable for a wide range of applications including wearable devices, spectroscopy, industrial measurement, and medical equipment.
Products
| Part No. | Characteristics | Dimensions | |||||
| Spectral response range λ[μm] |
Peak sensitivity wavelength λp[μm] |
Photo sensitivity R[A/W] λ=1.55μm |
Dark current ID[nA] VR=5V |
Chip Size [μm] |
Chip Thickness [μm] |
Detection area [μm] |
|
| H15CAR | 0.9 ~ 1.7 | 1.55 | 1 | 0.12 | 350*350 | 150 | φ200 |
| H15AAR | 0.9 ~ 1.7 | 1.55 | 1 | 0.15 | 470*470 | 150 | φ300 |
| H15BAR | 0.9 ~ 1.7 | 1.55 | 1 | 0.2 | 600*600 | 150 | φ430 |
