IR3MH
IR3MH(AlGaAs RC LED Chip)
Red Point Source LED
[Applications]
- Optical rotary encoder
- Photoelectri sensor
- Safety light curtain
Electro-Optical Characteristics
（Ta=25°C）
| Parameters | Symbol | Condition | Typ. | Unit |
| Forward Voltage | VF | IF=16mA | 1.8 | V |
| Reverse Voltage | VR | IR=10μA | 6.0 | V |
| Radiated Power | Po | IF=16mA | 0.8 | mW |
| Peak Wavelength | λp | IF=16mA | 850 | nm |
LED Chip is mounted on TO-18 gold header without resin coated.
Electro-Optical Characteristics are measurement values of DOWA's sorting machines.
Absolute Maximum Ratings
| Item | Symbol | Value | Unit |
| Forward Current | IF | 30 | mA |
| Operating Temperature | TOPR | -30 to +85 | ℃ |
| Storage Temperature | TSTR | 0 to +40 (No condensation) | ℃ |
Physical Characteristics and Structure
| 1) Material | ： AlGaAs |
| 2) Structure | ： Resonant Cavity Structure |
| 3) Junction Size | ： 0.190mm X 0.330mm |
| 4) Bond Pad Size | ： 0.080mm diameter |
| 5) Anode Metallization | ： Gold Alloy |
| 6) Cathode Metallization | ： Gold Alloy |

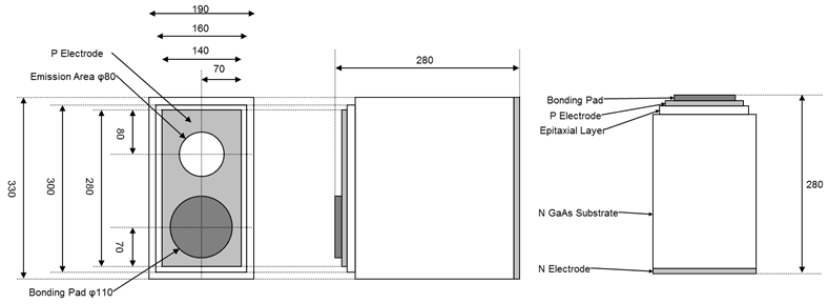

Physical Dimensions

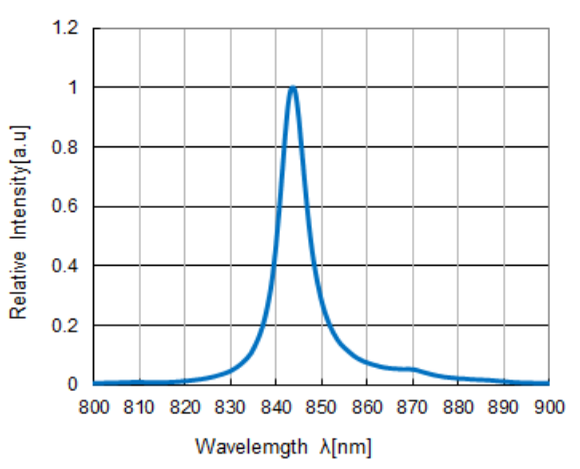

Relative Spectral Emission

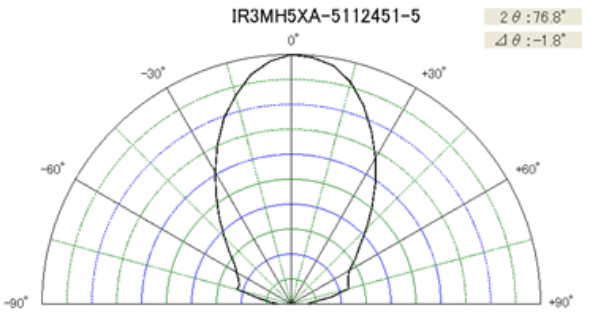

Radiation Characteristics

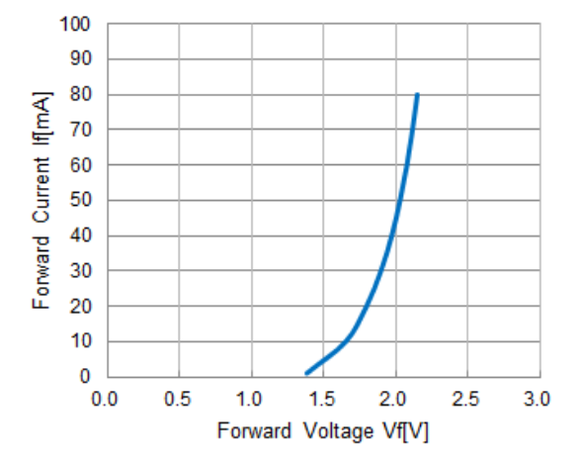

Forward Voltage vs Forward Current

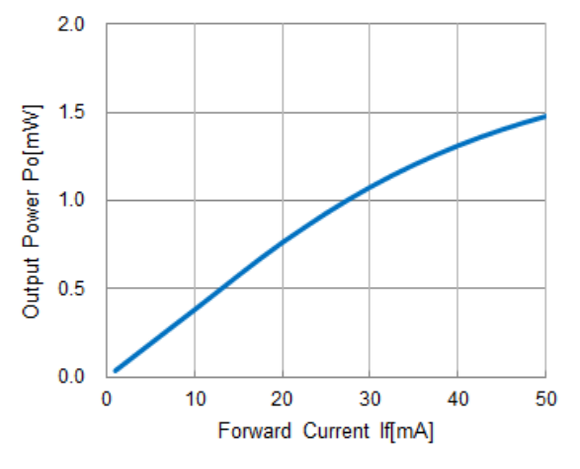

Forward Current vs Radiant Flux
【Notice】
This specification is for reference purpose only, and subject to change without prior notice.
Approved specification shall be obtained for the regular purchase.
